Competitive price cold vertical temperature controlled inseeds oil press machine

FOB Reference Price:Get Latest Price
US $799-1,399 / Sets | 1 Set/Sets linseeds oil press (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Usage:
Rapeseed seed,soybean, peanut
Type:
Cold & Hot Pressing Machine, Vacuum filter type
Automatic Grade:
Automatic
Production Capacity:
40-60kg/h
Place of Origin:
China (Mainland)
Brand Name:
Dulong
Model Number:
DL-ZYJ60C
Voltage:
AC 220 / 380 V
Power(W):
3KW
Dimension(L*W*H):
110*40*130cm
Weight:
260KG
Certification:
CE
After-sales Service Provided:
No overseas service provided
Material:
stainless steel
Intput:
40~60kg raw material/h
Production:
20~35kg/h oil
Net weight:
260KG
Gross weight:
300KG
Minimum Order Quantity:
1 sets
Work life:
10-15 years
Warranty:
1 years
Payment:
L/C, T/T, Western Union, MoneyGram, Escrow
Packaging:
115*45*135cm
SupplyAbility
SupplyAbility:
1000 Set/Sets per Month linseeds oil press
Packaging & Delivery
Packaging Details

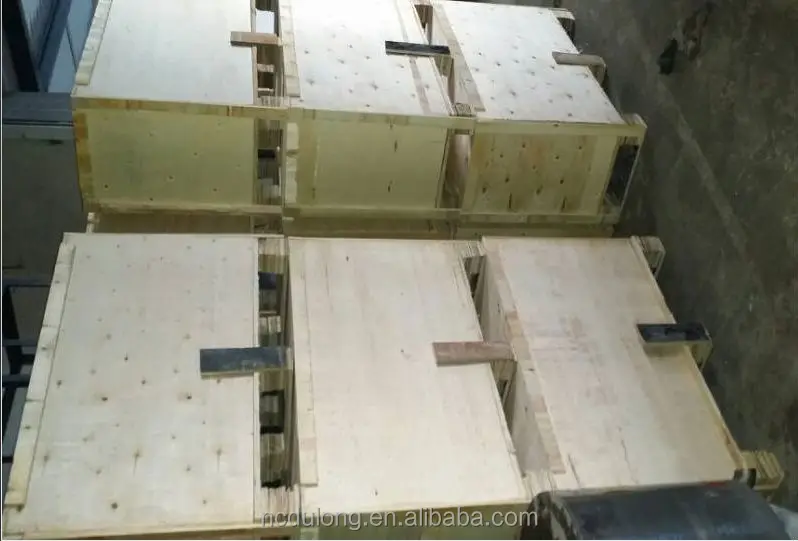

Wooden box: 115*45*135cm
Port
Qingdao, Ningbo, Shanghai, Shenzhen
Lead Time :
within 7 days after payment





 Competitive price cold vertical temperature controlled inseeds oil press machine

Product Description



Model:DL-ZYJ60C oil press machine
Power:3 kw
Capacity:   40-60kg/h
Output:  20-35 kg/ h oil

Packing Demension:   115*45*135 cm



Usage:Rapeseed,seed,soybean, peanut,pepperseed,sunflower, cottonseed,tallow treeseeds,tung treeseeds,corn,sesame,walnut etc.

Detailed Images

 2 (3).jpg2 (1).jpg2 (2).jpg2 (4).jpg



                   Available industrial oil press models

Related Products





Oil press typeModel nameDimensionNet weightVoltage/powerInput(raw material)
Vacuum filter modelsDL-ZYJ60D105*80*140cm330kgmoter:3kw40-60kg/h
Filter:0.75kw
220v/380v
DL-ZYJ70D140*90*120cm350kgmoter: 4kw70-90kg/h
Filter:0.75kw
380v
DL-ZYJ100D160*110*150cm750kgmoter:5.5kw100-120kg/h
Filter:0.75kw
380v
DL-ZYJ120D175*110*170cm850kgmoter:7.5kw120-150kg/h
Filter:0.75kw
380v
DL-ZYJ200D210*150*180cm1200kgmoter:7.5kw200-230kg/h
Filter:1.1kw
380v
DL-ZYJ220D220*155*180cm1200kgmoter:11kw220-240kg/h
Filter:1.1kw
380v
DL-ZYJ400D250*165*200cm1600kgmoter:18.5kw400-450kg/h
Filter:1.1kw
380v
DL-ZYJ450D258*165*200cm1700kgmoter:22kw450-550kg/h
Filter:1.1kw
380v
Vertical temperature controlDL-ZYJ60C110*40*130cm260kg3kw
220v/380v
40-60kg/h
DL-ZYJ70C125*48*130cm280kg4kw,380v70-90kg/h

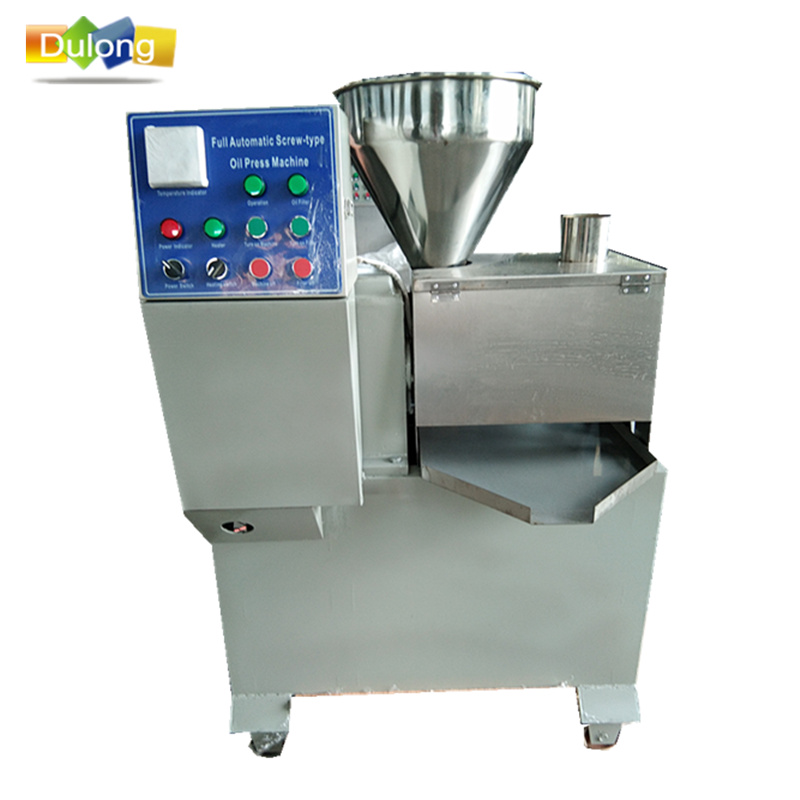

 DL-ZYJ60C:40-60kg/h input

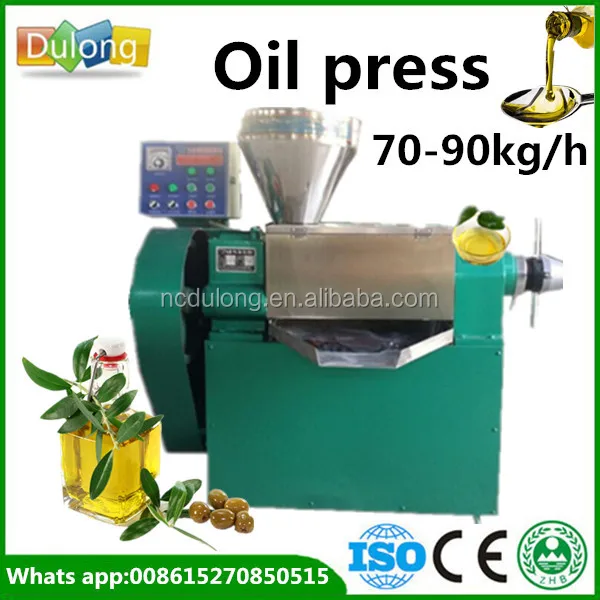

 DL-ZYJ70C:70-90kg/h input

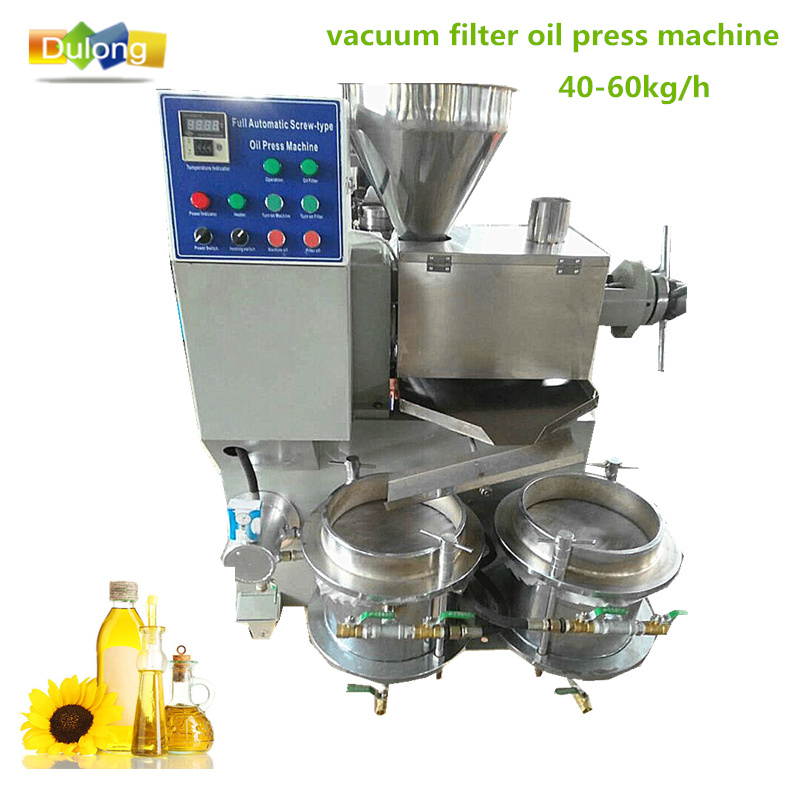

 DL-ZYJ60D:40-60kg/h input(with 2 filters)

 60D__ (2).jpg

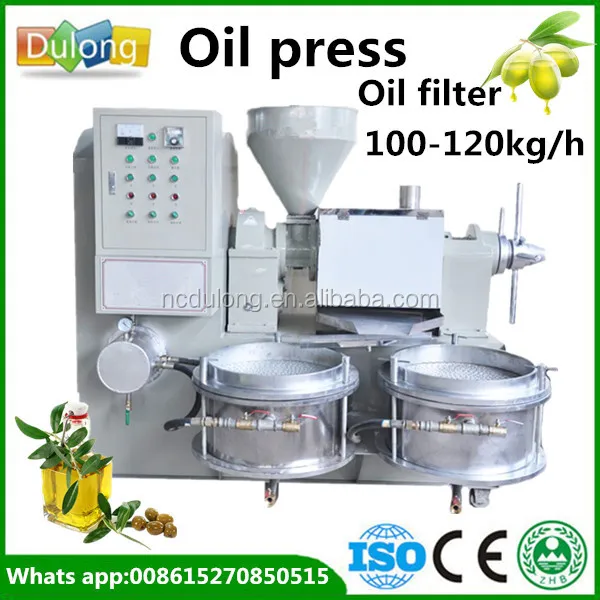

 DL-ZYJ100D:100-120kg/h input(with 2 oil filters)

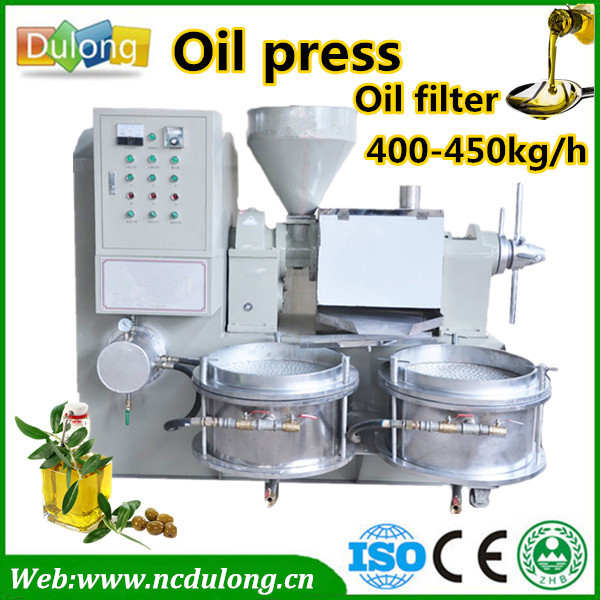

 DL-ZYJ140D:400-450kg/h input(with 2 oil filters)




Operation Guides



                                           Operation



1. Connect to the power and turn on the switch.
2. Regulate the temperature to be 150 -260, per raw materials.
3. Start the screw temperature heater
4. Start the motor forward-rotating when the temperature is okay.
5.First put a small amount of raw materials for pressing, to test whether the machine can be normal operation. And batch input materials after the diesel smoothly.
6.Close the termperature heater when materials pressing finished. And let the machine working emty for 2~5 mintues.
7.Stop the machine and disconnect the power when all the materials are pressing out.



Temperature Regulator Chart

Raw Materials

Temperature Range

seasame

180~230

peanuts,vegetable seed, soybean, sunflower seed,okra, etc

140~190

tea seed

150~190
